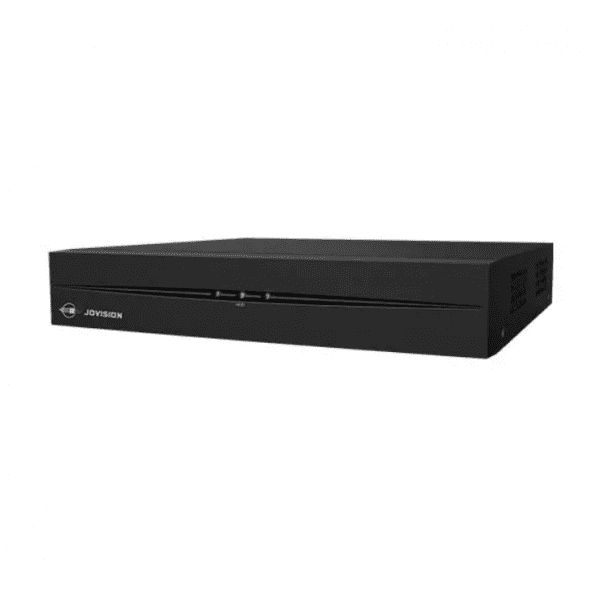

Jovision 10CH HD NVR (VS-ND6610)

JOVISION JVS-ND6610-HD(R2) 10CH H.265 1 SATA NVR Overview

Adopt the new  GUI , easy to operate and run smoothly

• Support intelligent coding  greatly reducing storage space

• Improved compatibility for hard disks, and up to 10TB

• Support Intelligent Detection and Human Detection

‘Video and Audio
‘P Camera input 10Channel

‘Audio Input/output 1 Channel Output, RCA;10Channel Audio
‘output through HDMI

Display

Interface 1 HDMI,1 VGA

Resolution HDMI
-2560X1440,1920%1080,1440%900,1280%1024,1280%720,
1028768,

VGA: 1920*1080,1440%900,1280%1024,1280*720,1024*768
‘Max Decoding 10ch@ §.0MP/4,0MP/1080P/960P/720P 25fps
“Mult-sereen Display 1/4/5/6/7/8/9/10

(OSD Camera Name & Time, Recording, Alarm Detecting, Remote
connection, Volume, Channel Number

Recording

Compression H.265/H.264

Resolution 10Ch §.0MP/4.0MP/1080P/960°/720P

Record Mode Manual, Schedule, MD

Backup Mode FAT32 USB Device/Network

Network

Interface 1 RJ-4 port (10/100Mbps)

[Network Function TCP/IP, DHCP UDP, SMTP, NTP]



Storage

SATA: Capacity upto 10TB
